    Hyundai Kona

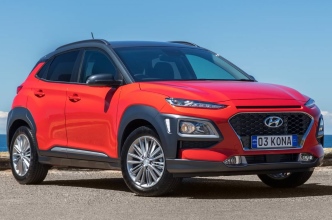

    2017 Hyundai Kona Elite Ttr Yel (awd) Pricing and Spec

    From

    $19,100

    excl. on-roads

    Overview

    The 2017 Hyundai Kona ELITE TTR YEL (AWD) is an all wheel drive 4 Door Wagon that was released to the Australian market on 9th January 2017 classified as a OS. The Hyundai Kona is regarded as a SUV small built in Korea with prices from a dealer as a used car starting at $19,100.

    The Hyundai Kona is an all wheel drive 4 door with 5 seats, powered by a 1.6L Turbo 4 Cylinder engine that has 130 kW of power (at 5500 rpm) and 285 Nm of torque (at 1500 rpm) via a 7 Speed Auto Dual Clutch. Hyundai claims the Kona ELITE TTR YEL (AWD) uses 6.7L/100km of unleaded petrol in the combined city and highway cycle while putting out 153g of CO2. It has a 50L fuel tank, meaning it should be able to travel 746km per full tank.

    The Hyundai Kona measures 1550mm (61.0 inches) in height, 4165mm (164.0 inches) in length, 1800mm (70.9 inches) in width with a 2600mm (102.4 inches) wheelbase that brings about a total of 1507kg (3322.4 lbs) of unladen weight. The Kona ELITE TTR YEL (AWD) comes standard with 215/55 R17 front tyres and 215/55 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.

    The 2017 Hyundai Kona ELITE TTR YEL (AWD) has a 170mm ground clearance with a 1250kg braked and 600kg unbraked towing capacity. It has a final gear ratio of 3.611.

    The Hyundai Kona has received a 5 star rating from ANCAP. The VIN number can be found on the Rear Lower Driver Side EngBay and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMHK1815WHU123456.

    Best For
    Family
    City driving
    Fun
    Warranty
    5Years
    or
    unlimited km
    ANCAP Safety Rating
    Fuel Efficiency
    50 L746 km
    4 Door Wagon
    petrol
    1.6L
    AWD
    7 AT
    5
    4

    Dimensions

    1550mm
    1800mm
    4165mm

    The dimensions shown above are for the base model.

    Specifications

    TypeTurbo Gasoline Direct Injection
    Size (cc)1591
    Size (L)-
    InductionTurbo 4 Cylinder
    CamshaftVARIABLE DOUBLE OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power130kW
    Power RPM5500
    Torque285Nm
    Torque RPM1500
    Bore Stroke77x85.44
    Compression Ratio10.00

    Transmission7 Speed Auto Dual Clutch
    Final Gear Ratio3.611
    Suspension Frontmacpherson strut
    Suspension Rearmulti-link system
    Steering MechanismRACK & PINION - POWER ASSISTED
    DriveAWD

    Fuel Combined (L/100km)6.7
    Fuel Urban (L/100km)8.0
    Fuel Extra Urban (L/100km)6.0
    Tank Size (L)50
    Fuel Typeunleaded petrol
    e10 Compatible-
    CO2 Combined153
    CO2 Urban182
    CO2 Extra Urban136

    Brake FrontDISC - VENTILATED
    Brake RearDISC - SOLID
    Tyre Front215/55 R17
    Tyre Rear215/55 R17
    Front Rim Size7Jx17
    Rear Rim Size7Jx17

    Vehicle Height (mm)1550
    Vehicle Length (mm)4165
    Vehicle Width (mm)1800
    Ground Clearance (mm)170
    Wheelbase (mm)2600
    Turning Circle (m)10.6
    Unladen Weight (kg)1507
    Gross Combined Weight (kg)-
    Gross Vehicle Weight (kg)1940
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)1250
    Towing Capacity Unbraked (kg)600

    Compliance Plate LocationPass Side Lower A-Pillar
    Country Of OriginKorea
    Number of Doors4
    Seats5
    Service Interval KMs15
    Service Interval Months12
    VIN LocationRear Lower Driver Side EngBay
    VIN NumberKMHK1815WHU123456
    Warranty KMs999
    Warranty Months60
    Discontinued Date31/08/2018

    ANCAP Rating5
    Euro Air Pollution StandardEURO 5
