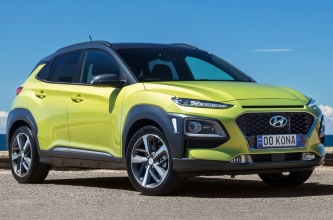

2017 Hyundai Kona Highlander Ttr (fwd) Pricing and Spec
From
$22,800
excl. on-roads
Overview
The 2017 Hyundai Kona HIGHLANDER TTR (FWD) is a front wheel drive 4 Door Wagon that was released to the Australian market on 9th January 2017 classified as a OS. The Hyundai Kona is regarded as a SUV small built in Korea with prices from a dealer as a used car starting at $22,800.
The Hyundai Kona is a front wheel drive 4 door with 5 seats, powered by a 2.0L Inline 4 Cylinder engine that has 110 kW of power (at 6200 rpm) and 180 Nm of torque (at 4500 rpm) via a 6 Speed Automatic. Hyundai claims the Kona HIGHLANDER TTR (FWD) uses 7.2L/100km of unleaded petrol in the combined city and highway cycle while putting out 169g of CO2. It has a 50L fuel tank, meaning it should be able to travel 694km per full tank.
The Hyundai Kona measures 1550mm (61.0 inches) in height, 4165mm (164.0 inches) in length, 1800mm (70.9 inches) in width with a 2600mm (102.4 inches) wheelbase that brings about a total of 1383kg (3049.0 lbs) of unladen weight. The Kona HIGHLANDER TTR (FWD) comes standard with 235/45 R18 front tyres and 235/45 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2017 Hyundai Kona HIGHLANDER TTR (FWD) has a 170mm ground clearance with a 1300kg braked and 600kg unbraked towing capacity. It has a final gear ratio of 3.510.
The Hyundai Kona has received a 5 star rating from ANCAP. The VIN number can be found on the Rear Lower Driver Side EngBay and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMHK181AMHU123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Multi Point Fuel Injection |
|---|---|
| Size (cc) | 1999 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 110kW |
| Power RPM | 6200 |
| Torque | 180Nm |
| Torque RPM | 4500 |
| Bore Stroke | 81x97 |
| Compression Ratio | 12.50 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.510 |
| Suspension Front | macpherson strut |
| Suspension Rear | torsion bar |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 7.2 |
|---|---|
| Fuel Urban (L/100km) | 9.7 |
| Fuel Extra Urban (L/100km) | 5.8 |
| Tank Size (L) | 50 |
| Fuel Type | unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 169 |
| CO2 Urban | 226 |
| CO2 Extra Urban | 136 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - SOLID |
| Tyre Front | 235/45 R18 |
| Tyre Rear | 235/45 R18 |
| Front Rim Size | 7.5Jx18 |
| Rear Rim Size | 7.5Jx18 |
| Vehicle Height (mm) | 1550 |
|---|---|
| Vehicle Length (mm) | 4165 |
| Vehicle Width (mm) | 1800 |
| Ground Clearance (mm) | 170 |
| Wheelbase (mm) | 2600 |
| Turning Circle (m) | 10.6 |
| Unladen Weight (kg) | 1383 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1830 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1300 |
| Towing Capacity Unbraked (kg) | 600 |
| Compliance Plate Location | Pass Side Lower A-Pillar |
|---|---|
| Country Of Origin | Korea |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Rear Lower Driver Side EngBay |
| VIN Number | KMHK181AMHU123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 31/08/2018 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
